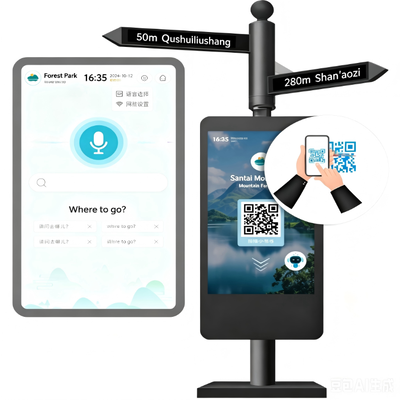

This Yingmi real-time navigation digital signage system is an all-in-one intelligent guidance solution integrating IoT, GPS, AI and multimedia technologies. It breaks the limitations of traditional static signage, with real-time dynamic navigation as its core advantage, and combines interactive touch screens, mechanical directional arms and mobile app connectivity. The system delivers accurate, personalized and seamless navigation services in complex indoor and outdoor environments, and has been widely applied in tourist attractions, museums, shopping malls, hospitals, campuses and transportation hubs across dozens of countries worldwide.
Digital Signage Terminal Parameters
| Parameter | Specification |
|---|---|
| Display Size | 32/43/55 inch optional |
| Resolution | 1920×1080 Full HD |
| Touch Type | Capacitive multi-touch |
| Operating System | Android 9.0+ |
| CPU | RK3399 Quad-core |
| RAM | 4GB |
| Storage | 32GB |
| Network | Wi-Fi 2.4G/5G, Ethernet |
| Mechanical Arm | 3 independent directional arms |
| LED Display on Arms | High-brightness text/arrow display |
| Power Supply | AC 100-240V |
| Working Temperature | -10℃ to 50℃ |
| Dimensions | Customizable based on model |
System Server Requirements
| Parameter | Minimum Requirement | Recommended Requirement |
|---|---|---|
| CPU | Intel i5 (4-core) | Intel i7 (8-core) |
| RAM | 16GB | 32GB |
| Storage | 200GB SSD | 500GB SSD |
Q1: How does the real-time navigation work on the digital signage?
A1: The system uses GPS for outdoor positioning and Bluetooth beacon technology for indoor positioning. After selecting a destination, it calculates the optimal route in real time and displays it on the map, while the mechanical arm points the direction.
A2: Yes, we provide fully customized hand-drawn maps and interface design services to match your brand image and site characteristics.
A3: A single cloud platform supports managing up to 1000 terminals simultaneously, suitable for large-scale venues and multi-site operations.
A4: Yes, the terminal stores all basic navigation data locally and can operate normally even when the network is disconnected. Real-time updates will be synchronized automatically when the network is restored.
